Z-Float™
Patented True Z-Axis Stabilization™
A passive vertical stabilization platform engineered for controlled linear motion under repeated impact loading.
-
Z-Float™ was selected to help protect shock-sensitive components from repeated vertical (Z-axis) impacts in next-generation mobile platforms. In testing, Z-Float™ reduced vertical shock by ~20–60%* while maintaining a defined footprint and supporting payloads up to 300+ lb.
Introducing the Z-50™
A Compact Evolution of True Z-Axis Stabilization™
Built from everything we learned developing the original Z-Float™ (Z-100), the new Z-50™ is a smaller, lighter-weight vertical stabilization platform designed for payloads in the 25–100 lb class.
It retains the same patented true Z-axis architecture — footprint locked, no arcs, no sway — but with a more efficient structural layout and reduced mass. The goal was simple: eliminate unnecessary over-engineering while preserving performance integrity.
The Z-50™ is currently entering validation testing. Based on modeled load curves, spring geometry, and revised linkage ratios, projected performance meets or exceeds the original Z-100 in its intended payload range.

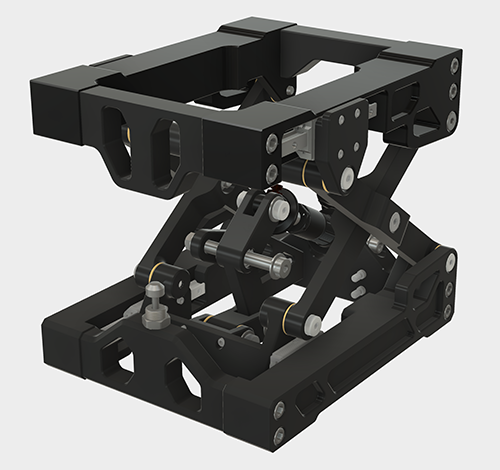

Z-Float™ Z50™ Front View

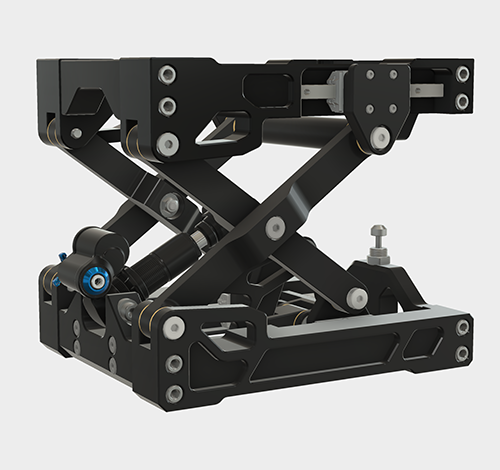

Z-Float™ Z50™ Right Side Rear View
Z-Float™ Features
Available in two configurations: Z-50™ (25–100 lb) and Z-100™ (100–300+ lb).
True Z-Axis Stabilization™
Delivers pure vertical travel with a footprint-locked geometry
No Arcs, No Sway, No Deviations
Silent glide™
Patented guided motion architecture delivers smooth, constrained vertical displacement while maintaining strict Z-axis alignment under dynamic load conditions
Compact Design
Engineered around true Z-axis geometry, Z-Float™ delivers footprint-locked vertical stabilization without arcs, sway, or lateral deviation.
load Tuning
Spring rate and damper selection determine payload range and vertical response characteristics—enabling scalable performance without proprietary components.
expandable Platform
Designed around a shock-agnostic architecture that supports widely available passive dampers while remaining compatible with higher-performance or active damping systems.
Scalable platform
Available in multiple payload configurations—including the compact Z-50™ and the high-capacity Z-100™—to match specific performance and budget requirements.
Z-FLOAT™ SYSTEM SPECS
Z-50 Adjustable Payload Range: 25-300lbs*
Maximum Payload Weight: TBD
Z-100 Adjustable Payload Range: 100-600lbs
Maximum Payload Weight: 600+lbs*
* Weight range is easily adjusted by exchanging the springs to match specific payload requirements.
Z-50™
Payload Displacement: 4.735”
Neutral State: 12” @30% Sag
Total Height: 13.024”* (max extension)
Minimum Height: 8.29”
Weight: TBD
Dimensions: 13.068”(L) x 10.858” (W) x 13.024” (H)*
Z-100™
Payload Displacement: 11”
Neutral State: 19.03”
Total Height: 24.69” (627.12mm) (max)
Minimum Height: 13.37” (339.51mm)
Weight: 89lbs**
** without Top plate.
Dimensions: 22.25”x19”x24.69”***
*** Max height when fully extended.

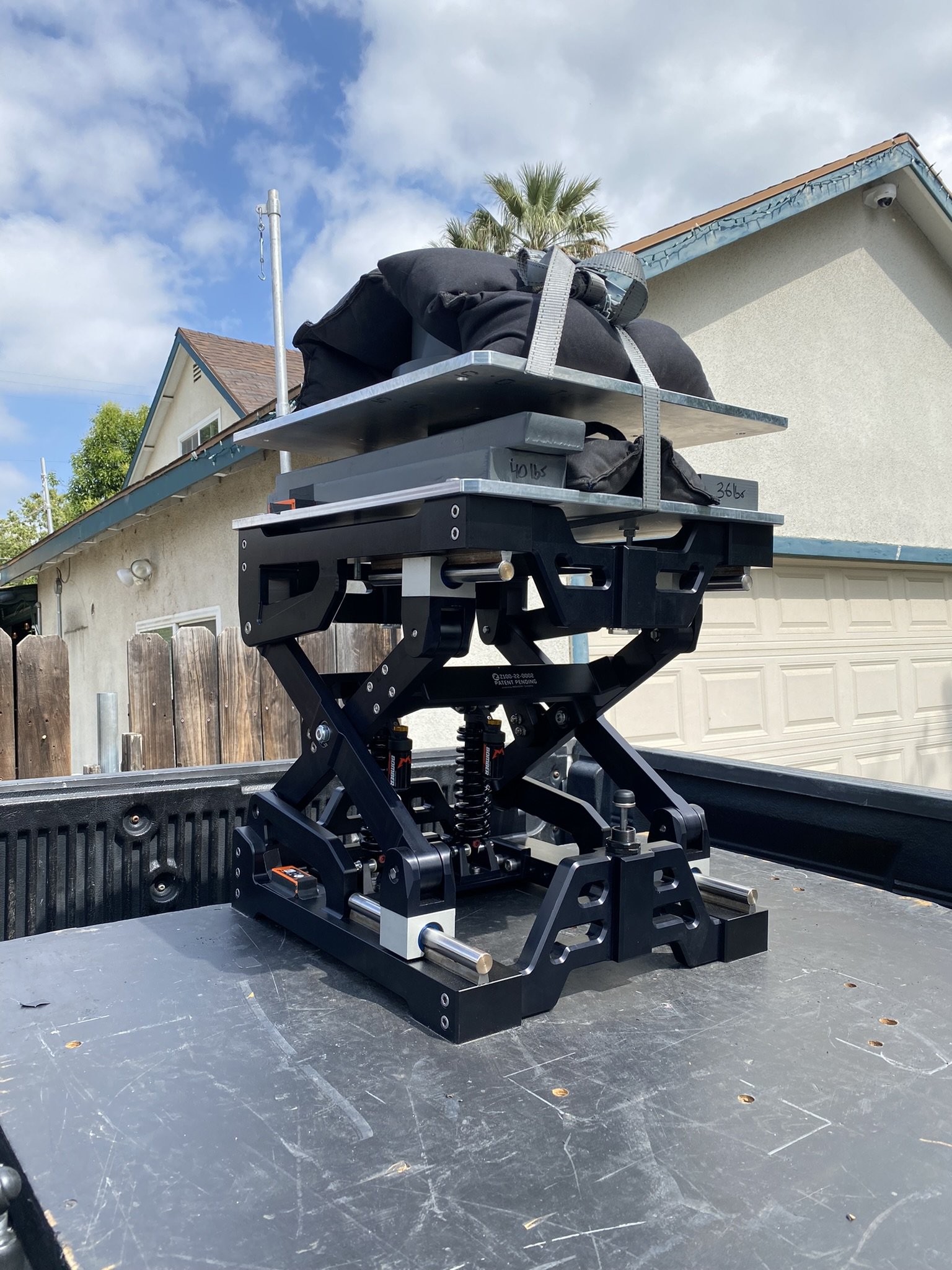

Z-Float™ Testing:
